Arduino IDE for ESP8266

Arduino-compatible IDE with ESP8266 support

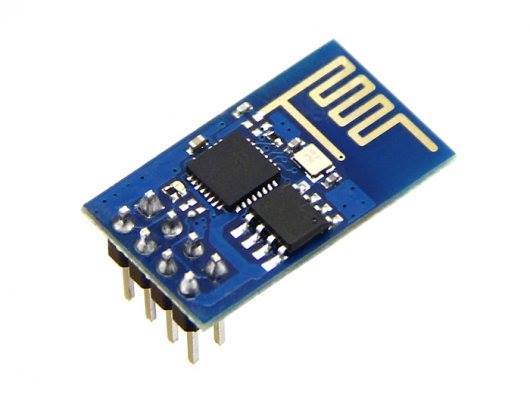

This project brings support for ESP8266 chip to the Arduino environment. ESP8266WiFi library bundled with this project has the same interface as the WiFi Shield library, making it easy to re-use existing code and libraries.

Basic Wiring functions

pinMode, digitalRead, digitalWrite work as usual.

Pin numbers correspond directly to the esp8266 GPIO pin numbers. To read GPIO2, call digitalRead(2);


analogRead(0) reads the value of the ADC channel connected to the TOUT pin.

Pin interrupts are supported through attachInterrupt, detachInterrupt functions. Interrupts may be attached to any GPIO pin, except GPIO16. Standard Arduino interrupt types are supported: CHANGE,RISING, FALLING.

Timing and delays

millis and micros return the number of milliseconds and microseconds elapsed after reset, respectively.

delay pauses the sketch for a given number of milliseconds and allows WiFi and TCP/IP tasks to run.delayMicroseconds pauses for a given number of microseconds.

Remember that there is a lot of code that needs to run on the chip besides the sketch when WiFi is connected. WiFi and TCP/IP libraries get a chance to handle any pending events each time the loop()function completes, OR when delay(...) is called. If you have a loop somewhere in your sketch that takes a lot of time (>50ms) without calling delay(), you might consider adding a call to delay function to keep the WiFi stack running smoothly.

There is also a yield() function which is equivalent to delay(0). The delayMicroseconds function, on the other hand, does not yield to other tasks, so using it for delays more than 20 milliseconds is not recommended.


Serial object works much the same way as on a regular Arduino. Apart from hardware FIFO (128 bytes for TX and RX) HardwareSerial has additional 256-byte TX and RX buffers. Both transmit and receive is interrupt-driven. Write and read functions only block the sketch execution when the respective FIFO/buffers are full/empty.

Only 8n1 mode is supported right now.

By default the diagnostic output from WiFi libraries is disabled when you call Serial.begin. To enable debug output again, call Serial.setDebugOutput(true);

WiFi(ESP8266WiFi library)

This is mostly similar to WiFi shield library. Differences include:

WiFiServer, WiFiClient, and WiFiUDP behave mostly the same way as with WiFi shield library. Three samples are provided for this library.


Library for calling functions repeatedly with a certain period. Two examples included.


This is a bit different from standard EEPROM class. You need to call EEPROM.begin(size) before you start reading or writing, size being the number of bytes you want to use. Size can be anywhere between 4 and 4096 bytes.

EEPROM.write does not write to flash immediately, instead you must call EEPROM.commit() whenever you wish to save changes to flash. EEPROM.end() will also commit, and will release the RAM copy of EEPROM contents.

Three examples included.

I2C (Wire library)

Only master mode works, and Wire.setClock has not been verified to give exactly correct frequency. Before using I2C, pins for SDA and SCL need to be set by calling Wire.pins(int sda, int scl), i.e.Wire.pins(0, 2); on ESP-01.

OneWire (from

Library was adapted to work with ESP8266 by including register definitions into OneWire.h Note that if you have OneWire library in your Arduino/libraries folder, it will be used instead of the one that comes with the Arduino IDE (this one).

mDNS responder (ESP8266mDNS library)

Allows the sketch to respond to multicast DNS queries for domain names like “foo.local”. See attached example and library README file for details.

Other libraries

Libraries that don’t rely on low-level access to AVR registers should work well. Here are a few libraries that were verified to work:

Upload via serial port

Select “esptool” as a programmer, and pick the correct serial port. You need to put ESP8266 into bootloader mode before uploading code (pull GPIO0 low and toggle power).

Things not done yet
